Rubber Crowning Calender Roller Oil Circulation Customized Calendering Roll

Brand Name: HUATAO
Model Number: HT-SCR01
MOQ: 1pcs
Price: 2000USD/pc-5000USD/pc
Delivery Time: 60 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Place of Origin:
CHINA
Certification:
ISO CE
Product Name:
Customized Rubber Crownning Soft Calender Roller Oil Circulation
Key Words:
Swimming Roller,Soft Calender Roller, Soft Nip Calender Roller
Shell Material:
Forge Steel 45#
Cover Hardness:
91±2 Shore D
Cover Type:
Combination CHINA Andritz Jalon Yellow
Shell Inner:
Honing Ra0.4
Roll Surface Roughness:
Ra0.1 Um
Roll Surface Runout:
≤0.02mm
Packaging Details:
wooden case
Supply Ability:
50 Pcs/month
Highlight:

Rubber Crowning Calender Roller

,

Calender Roller Oil Circulation

,

Customized Calendering Roll

Product Description
Customized Rubber Crownning Soft Calender Roller Oil Circulation
Introduction of Soft Calender Roller
Soft Calender roll comprises a massive steel shaft, steel shell and fixed bearing arrangement on the shaft. The hydraulic hoses are equipped with fast couplings. The oil pressure between the shaft and shell automatically controls against linear load, maintaining uniform linear pressure distribution through the entire nip. Crow correction of the roll can be manually controlled from the control panel, mainly used in the calender machine of the paper machine line.
Technical Data Sheet of Soft Calender Roller
Shell material forge steel 45#
Roll face length customized
Cover width customized
Cover thick customized
Cover hardness 91±2 Shore D
Cover type combination CHINA Andritz Jalon Yellow
Shell inner honing Ra0.4
Roll surface runout ≤0.02mm
Metal seals Germany
Roll balancing 900 m/min(G1.0)
Drive type Toothed belt drive AT20,Z=63
Bearing of the Soft Calender Roller
  • Spherical roller bearing: 2pcs
  • Bearing type: SKF/FAG
  • Joint ball bearing & Bearing house: 1set
  • Drawing supplied by client
  • Static test after roll assembly is used to detect leakage
  • Max Test pressure: 10bar
  • Dynamic simulation after roll assembly is used to detect roll deformation
Soft Calender Roller Differential Pressure Regulation Head
  • Function: Regulate the pressure in the Swimming Roll to control the correct deflection
  • Equipment Location: On front side of the Swimming Roll
  • Proportion regulation air cell: 1pcs
  • Piston rod: 1pcs
  • Bearing (INA): 1pcs
  • Seal parts: Germany
Assembly Tool of Soft Calender Roller
  • Disassembly and installation tool of swimming roll: 1set
  • Guide Sleeve: 1pc
  • Guide screw: 1Set

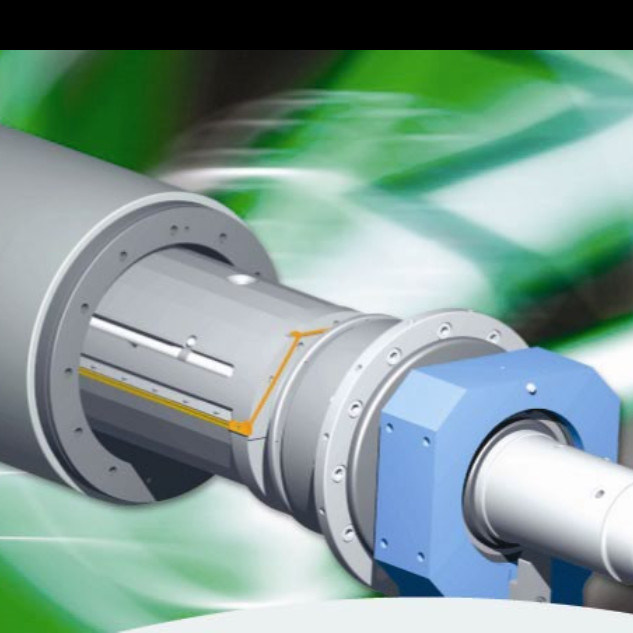

Rubber Crowning Calender Roller Oil Circulation Customized Calendering Roll 0
