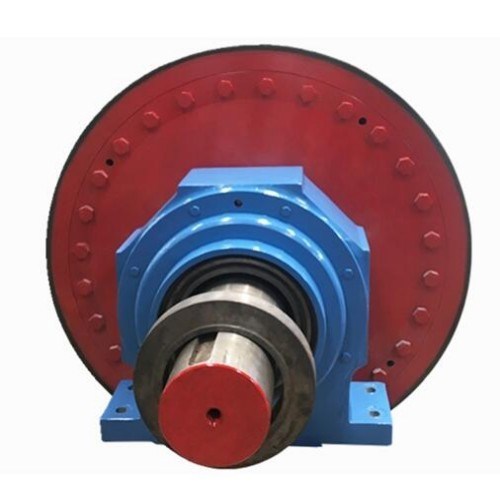

1000mm-18000mm Dia Press Section Roll Jumbo Rubber Press Roll

Name: 1000mm-18000mm Dia Press Section Roll Jumbo Rubber Press Roll
Brand: SHIJIAZHUANG HUATAO IMPORT AND EXPORT TRADE CO., LTD.
SKU: JUMBO PRESS ROLL
Price: 3,500.00 USD
Availability: InStock

Brand Name:	HUATAO
Model Number:	JUMBO PRESS ROLL
MOQ:	1 Pc
Price:	2000USD/pc-5000USD/pc
Delivery Time:	1-3 Months
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Product Name:

Press Section Jumbo Press Roll Rubber Covered For Paper Making Machine

Key Words:

Jumbo Press Roll, Press Roll, Rubber Press Roll, Press Section Roll, Paper Machine Press Roll

Diameter:

1000-18000mm

Working Width:

2100-10000mm

Surface:

Blind Hole, Smooth, Grooved

Surface Coating:

Rubber, PU

Shaft Material:

Cast Steel, Nodular Cast Iron

Bearing Housing:

Gray Cast Iron, Nodular Cast Iron

Bearing:

SKF Or FAG Or Same Grade

Connection Type:

Flange Joint

Packaging Details:

Wooden Cases

Supply Ability:

10000 Pcs/Year

Highlight:

18000mm Dia Press Section Roll

1000mm Press Section Roll

18000mm Jumbo Rubber Press Roll

Product Description

Press Section Jumbo Press Roll Rubber Covered For Paper Making Machine

Jumbo Press Roll Basis Information

Jumbo Press roll refers to a nip composed of pressing rollers with a diameter exceeding 1000mm, primarily used in the production of corrugated paper, cardboard, and other heavy-weight paper products.

Compared with standard presses, the wide nip formed by large-spoke press allows extended sheet pressing time, significantly improving:

Dehydration efficiency and capacity through two-way vertical dehydration design
Paper quantity output
Reduced steam consumption in dryer sections
Enhanced paper strength and burst resistance

To counteract the substantial heat generated from high linear pressure between rollers, our design incorporates a water cooling system through the spoke body via an operation-side shaft head inlet.

Paper machines utilizing this technology achieve high speed, low energy consumption, and superior paper quality, making jumbo pressing technology the preferred choice for both machine upgrades and new designs.

Jumbo Press Roll Advantages

Wide pressure zone formation
Two-way vertical dehydration system
Enhanced dehydration efficiency and paper dryness
Improved strength and durability
Reduced steam consumption

Jumbo Press Roll Applications

Primarily used in production of:

Corrugated paper
Cardboard
Other heavy-weight paper or board products

Jumbo Press Roll Technical Parameters

Parameter	Specification
Product name	Jumbo press roll
Diameter	1000-18000mm
Working width	2100-10000mm
Surface	Blind hole, Smooth, Grooved
Surface coating	Rubber or PU
Shaft	Cast steel, Nodular cast iron
Bearing housing	Gray cast iron, Nodular cast iron
Bearing	SKF or FAG or equivalent grade
Connection type	Flange joint

About Huatao Group

Founded in 2008, Huatao Group is a leading supplier of industrial rollers with over 15 years of experience serving the paper, rubber, plastic, and nonwoven fabric industries.

Industry Specializations:

Paper Industry: Forming rollers, vacuum couch rollers, press rollers, dryer cylinders, calender rollers
Plastic & Rubber: Chill rollers, MDO rollers, treatment rollers, winding cores, coating drums
Nonwoven Fabric: Cylinder rollers, guide rollers, embossing rollers, cooling rollers

Our products are exported to 96+ countries, backed by our commitment to innovation, reliability, and customer satisfaction. We understand unique customer requirements and match them with optimal solutions from our network of quality manufacturers.

At Huatao, we ensure every customer purchases with confidence and receives ongoing support throughout the product lifecycle.
