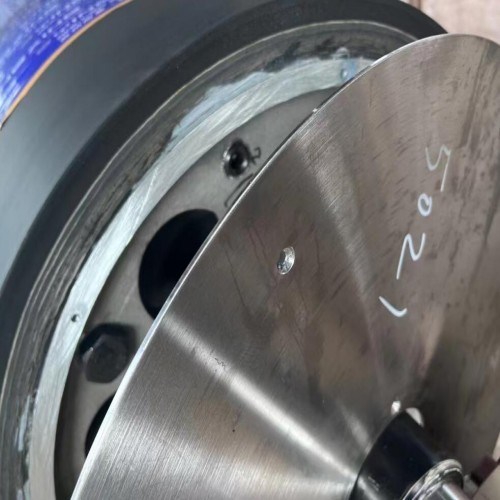

CFRP Carbon Fiber Rubber Roller 13m EPDM Roller Covering Rubber

Name: CFRP Carbon Fiber Rubber Roller 13m EPDM Roller Covering Rubber
Brand: SHIJIAZHUANG HUATAO IMPORT AND EXPORT TRADE CO., LTD.
SKU: CFRP CONTACT ROLLER
Price: 3,500.00 USD
Availability: InStock

Brand Name:	HUATAO
Model Number:	CFRP CONTACT ROLLER
MOQ:	1 Pc
Price:	2000USD/pc-5000USD/pc
Delivery Time:	1-3 Months
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Product Name:

BOPP BOPET Production Line CFRP Carbon Fiber Contact Roller EPDM Rubber Coated

Key Words:

CFRP Contact Roller, Carbon Fiber Contact Roller, Rubber Coated CFRP Contact Roller, Winding CFRP Contact Roller

Roller Shell Material:

Carbon Fiber Reinforced Polymer (CFRP)

Shaft Material:

45# Steel

Application:

High Speed Winder And Slitter

Roller Surface:

Rubber Coated

Maximum Diameter:

1300mm

Maximum Length:

13000mm

Packaging Details:

Wooden Case

Supply Ability:

1000 Pcs/Year

Highlight:

CFRP Carbon Fiber Rubber Roller

Carbon Fiber Rubber Roller 13m

13m EPDM Roller Covering Rubber

Product Description

45# Steel CFRP Carbon Fiber Roller EPDM Rubber Coated for BOPP BOPET Production Line

BOPP BOPET Production Line CFRP Carbon Fiber Contact Roller EPDM Rubber Coated

CFRP Contact Roller Basis Information

Continuously increasing machine speeds and material web widths are requirements which can hardly be met using conventional rollers made of steel and aluminum. The modern design material CFRP is therefore state-of-the-art in our company for rollers which must be able to meet even particularly high-end requirements. For this material, the rigidity-weight-ratio is many times higher than that of aluminum or steel. The critical speed of a rotating body can be increased, and its deflection as well as its mass moment of inertia can be reduced.

Product name	CFRP contact roller
Shell material	Carbon fiber (CFRP)
Surface	EMDP, NBR, Hypalon rubber
Maximum Face Length	13000mm
Maximum Speed	3000m/min

CFRP Contact Roller made of CFPR are available in the same technical designs as our proven metal rollers, and additionally provide the advantages of the modern CFRP material. CFRP Contact Roller can be delivered with diameters up to 1200mm and depending on the application, roller lengths of up to 13,000 mm are available.

CFRP Contact Roller Features

CFRP Contact Roller For BOPP line is a specialized roller used in winding processes. It is made from carbon fiber-reinforced polymer (CFRP) and offers several advantages over traditional steel Rollers.

Improved Stability: Carbon Fiber Contact Roller For Winding have low inertial forces, which allows them to maintain stability even at higher speeds compared to steel or aluminum rollers
Higher Speeds: Due to their low inertial forces, carbon fiber rollers can reach higher speeds, resulting in a more efficient rolling process.
Reduced Stresses: Carbon Fiber Contact Roller For Winding reduce stresses on Motors and Bearings, leading to increased life and efficiency.
Light weight: Carbon Fiber Contact Roller For Winding are significantly lighter than steel rollers, reducing handling and safety issues during changeovers.
Energy Efficiency: The lightweight nature of carbon fiber rollers reduces energy consumption.
Faster Acceleration: Carbon Fiber Contact Roller For Winding can speed up significantly faster than steel rollers.

CFRP Contact Roller Parameters

Single-shell construction with CFRP-tube
Shrinked and welded disks and journals from S355 joined by adhesive in tube
Surface: Black EPDM coated, thickness 14-16mm, Roughness: Ra0.4μm
Out of roundness ≤0.05mm
Dynamic balancing G2.5 up to line max. speed
