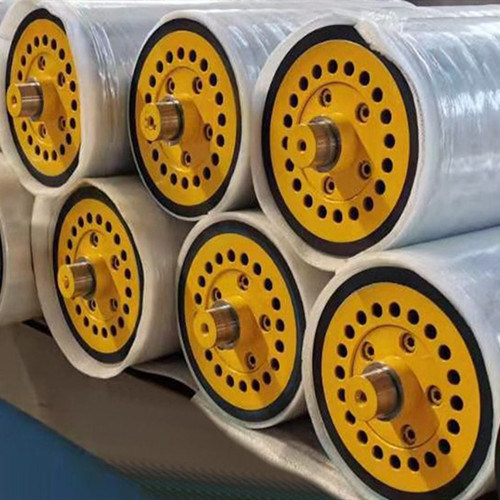

Carbon Fiber Slitting Nip Roller High Speed Shore A60-A90 Slitter Roller

Brand Name:	HUATAO
Model Number:	HT-CFSR-1
MOQ:	1PCS
Price:	2000USD/pc-5000USD/pc
Delivery Time:	50DAYS
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

High Performance Carbon Fiber Slitting Nip Roller For High Speed Slitting Machine

Key Words:

Bopp Carbon Fiber Slitting Nip Roller, Bopet Carbon Fiber Slitting Nip Roller, Carbon Fiber Nip Roller, Slitting Nip Roller, Carbon Fiber Slitting Nip Roller

Surface:

Smooth

Surface Hardness: Thickness::

Shore A60-90

Packaging Details:

WOODEN BOX

Supply Ability:

100PCS/MONTH

Highlight:

Carbon Fiber Slitting Nip Roller

Shore A60 Slitter Roller

Shore A90 Slitter Roller

Product Description

High Performance Carbon Fiber Slitting Nip Roller For High Speed Slitting Machine

Carbon roller that simultaneously achieves light weight, high stiffness, and higher critical speed. It is used in a wide range of fields including separators for rechargeable batteries, optical applications, films in general, printing, and paper manufacturing, making a significant contribution to production quality improvement and cost reduction by speeding up production, and reducing defective rates.

Carbon Fiber Slitting Nip Roller Advantages:

Extend bearing and seal life, lengthen life of equipment, rollers, bearings, bushings, and journals
Reduce need for synchronizing drives and controls
Diminish vibration and the number of operator adjustments needed to maintain process parameters
Lower rotational inertia for higher production speeds plus easier start-ups and shutdowns
Less machine wear and quiet whip for reduced web damage and failures; improve web speed and cut down scrap caused by line tension

Technical Datasheet:

Specification	Details
Roller material	High-performance carbon fiber composite material
Composite shaft head connection	Durable and reliable (patented technology)
Weight	30kg, composite material density 1600kg/m³
Surface coating	EPDM, or other rubber coating
Maximum diameter	Can be designed and manufactured <190mm
Surface roughness	Ra0.8um
Maximum length	Can be designed and manufactured <4000mm
Surface hardness	Shore A60-90
High stiffness	700N/m, deflection deformation 0.01mm/m, or stiffness can be designed, machine tool runs smoothly
Rubber coating thickness	5-10mm
Speed	Linear speed 1500m/min, or can be designed >5000r/min
Surface function	Smooth or slotted exhaust design

Applications:

PE, PP, PET, BOPP, BOPET, others, film slitting equipment (winding roller)

About Us:

HUATAO has successfully manufactured carbon fiber rubber rollers using a unique process. By maximizing the advantages of carbon fiber, our company has manufactured high-speed carbon fiber rollers that traditional steel cores cannot achieve. With the development and localization of equipment in the OPP, CPP film industry, and high-speed and wide-format printing industry, our company has currently developed and produced large-scale, low-weight, high-speed, and high-durability carbon fiber rollers. Our product features: easy replacement, reliable use, durable, and cost-effective.

Carbon fiber manufacturing uses some carbon-containing organic fibers (nylon, acrylic, etc.) as raw materials, which are strongly carbonized together with plastics, resins, etc., and the final chemical composition contains 90% carbon. Carbon fiber has a very small fineness (i.e., the number of grams per 90KM length), generally 19 grams. It has high axial strength, high modulus, no degeneration, good fatigue resistance, and a small thermal expansion coefficient, but generally has poor impact resistance.

Carbon Roller Production Capacity:

Contact roller:
Specification: 250*L5400mm
Total weight: 125KG

CommScope split roller:
Specification: outer diameter 130mm 115mm 88mm
Varying length

Atlas slitting machine roller:
Outer diameter: 180mm varying length
Surface slotted carbon fiber roller
