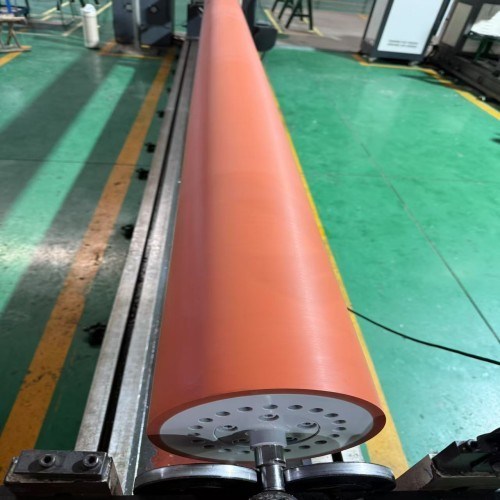

Film Slitting Carbon Fiber Roller T800 Rubber Covered Roller

Brand Name:	HUATAO
Model Number:	HT-CFSR-1
MOQ:	1PCS
Price:	2000USD/pc-5000USD/pc
Delivery Time:	45DAYS
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

Bopp Or Bopet Carbon Fiber Slitting Roller Used For Film Slitting Equipment

Key Words:

Bopp Or Bopet Carbon Fiber Slitting Roller, Carbon Fiber Slitting Roller Used For Film Slitting Equipment, Carbon Fiber Slitting Roller

Material:

T800

Surface Function::

Smooth Or Slotted Exhaust Design

Packaging Details:

WOODEN BOX

Supply Ability:

100PCS/MONTH

Highlight:

Film Slitting Carbon Fiber Roller

T800 Rubber Covered Roller

Carbon Fiber Roller T800

Product Description

BOPP or BOPET Carbon Fiber Slitting Roller for Film Slitting Equipment

Our company specializes in manufacturing high-performance carbon fiber rubber rollers using an innovative proprietary process. By leveraging the superior properties of carbon fiber, we produce rollers that outperform traditional steel-core rollers in high-speed applications. Our products are specifically designed for the OPP, CPP film industry and high-speed wide-format printing industry, offering large-scale, lightweight, high-speed, and durable solutions.

Key Features

Easy replacement and reliable operation
Exceptional durability and cost-effectiveness
Manufactured from carbon-containing organic fibers (nylon, acrylic) with 90% carbon composition
High axial strength and modulus with minimal thermal expansion
Superior fatigue resistance compared to traditional materials

Applications

Ideal for PE, PP, PET, BOPP, BOPET and other film slitting equipment (winding roller applications).

Technical Parameters

Parameter	Specification
Roller Material	High-performance carbon fiber composite material
Shaft Connection	Durable composite shaft head (patented technology)
Weight	30kg (composite material density 1600kg/m³)
Surface Coating	EPDM or other rubber coating options
Maximum Diameter	Custom designs up to 190mm
Surface Roughness	Ra0.8um standard
Maximum Length	Custom designs up to 4000mm
Surface Hardness	Shore A60-90 range
High Stiffness	700N/m with 0.01mm/m deflection deformation
Coating Thickness	5-10mm rubber coating
Operating Speed	1500m/min linear speed (designs available for >5000r/min)
Surface Options	Smooth or slotted exhaust designs

Material Advantages

Tensile Strength: Approximately 10 times stronger than steel
Elastic Modulus: Superior to steel with higher tensile elastic modulus
Fatigue Strength: 70-80% of static load strength (vs. 30-40% for metals)
Weight: Only 20% of equivalent steel components
Specific Strength: 20 times greater than steel core
Speed Capacity: More than double the speed of steel rollers

Additional Specifications

Contact Roller: 250*L5400mm (Total weight: 125KG)

CommScope Split Roller: Outer diameters 130mm, 115mm, 88mm (various lengths)

Atlas Slitting Machine Roller: Outer diameter 180mm (various lengths) with slotted surface design
