Paper Machine Suction Roll 12500mm Length Suction Press Roll

Name: Paper Machine Suction Roll 12500mm Length Suction Press Roll
Brand: SHIJIAZHUANG HUATAO IMPORT AND EXPORT TRADE CO., LTD.
SKU: SUCTION BOX
Price: 3,500.00 USD
Availability: InStock

Brand Name:	HUATAO
Model Number:	SUCTION BOX
MOQ:	1 Pc
Price:	2000USD/pc-5000USD/pc
Delivery Time:	1-3 Month
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Product Name:

Paper Machine Suction Box Of Suction Roll

Key Words:

Suction Box, Suction Roll, Suction Press Roll, Suction Couch Roll, Suction Pick Up Roll

Material:

SS304, SS316, SS316L

Maximum Face Length:

12500mm

Maximum Speed:

2000m/min

Application:

Used In Suction Roll In Paper Machine

Roller Type:

Suction Press Roll, Suction Couch Roll, Suction Pick Up Roll

Paper Machine Type:

Tissue Paper Machine, Writing And Printing Paper Machine, Kraft Paper Machine, Etc

Packaging Details:

Wooden Cases

Supply Ability:

10000 Pcs/Year

Highlight:

Paper Machine Suction Roll 12500mm

12500mm Length Suction Press Roll

Suction Roll 12500mm Length

Product Description

Paper Machine Suction Box Of Suction Roll 12500mm Maximum Face Length Press Roll

Paper Machine Suction Box Of Suction Roll

Suction Press Roller Brief Introduction

Press roll is the main component of press section in paper machine. There are many types of press rolls, the press of the old design paper machine uses flat press rolls.

With the increase of the speed of the paper machine, the vacuum press roller began to use, and then developed the grooved press roll, the 1970s research and development of blind hole press rolls and controllable crowning press rolls and other types of press rolls.

After absorbing the advantages of vacuum roller, grooved press roll and blind press rolls, several other new roller appeared later. In the 1980s and 1990s, wide press zones and shoe press for high-speed paper machines were developed.

Researchers have not stopped the development of new press rollers, the development of new press rollers to improve the efficiency of dehydration, improve the quality of the paper, reduce the adverse impact of the press on the paper.

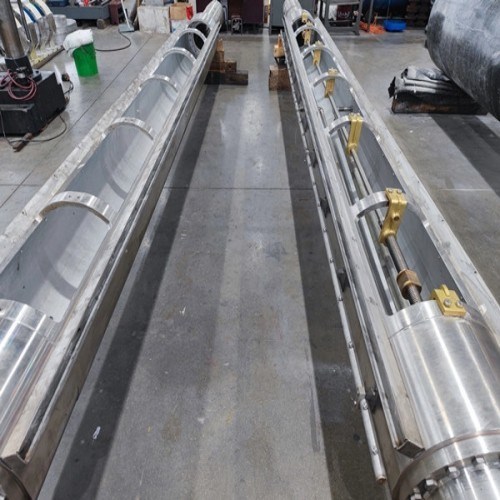

Suction Box Basis Information

Suction box is a component composition of the suction roll (suction couch roll, suction press roll, suction pick up roll).

The suction box is the inner device of the suction press rolls, suction box material normally in stainless steel 304 or stainless steel 316 or stainless steel 316L base on customer demand.

We can produce base on customer drawing, we also can supply onsite measure service. With CNC machining center, can process the suction box in high precision.

The suction roll widely used in the tissue paper machine, kraft machine and all kinds of high speed machine. We can supply the high quality and the max performance suction box for each customer.

Product name	Suction box
Application	Used in suction couch roll, suction press roll, suction pick up roll, etc
Material	SS304, SS316, SS316L
Maximum Face Length	12500mm
Maximum Speed	2000m/min

Suction Box Processing Capability

CNC gantry machining centers, Max length 22000mm Max width 3000mm.
CNC heavy Grinding Machine, Max load 50T, Max Dia1850mm, Max length 24000mm. Able to grind face length 12500mm.
Deep-hole Boring lathe, total length 30 meter, able to bore Φ 160-800mm tube, able to bore 11900mm long tube.
Deep-hole boring lathe, able to bore Φ 800-1850mm tube, able to bore 11900mm long tube.
CNC machine CKD61160L several sets Max Dia 1600mm, Max length 12000mm.

About Us

Huatao Group was founded in 2008. We are a professional and leading supplier of various rollers for paper machine, corrugator, rubber & plastic industry, nonwoven fabric industry over 15 years of experience.

Paper Industry: forming roller, vacuum couch roller, dandy roller, breast roller, rubber press roller, stone press roller, rubber roller, dryer cylinder, size press roller, calender roller, pope reel roller, spreader roller, embossing roller.

Plastic & Rubber industry: chill roller, MDO preheating roller, MDO nip roller, MDO stretching roller, PRS cooling roller, corona treater roller, corona treatment nip roller, flame treatment roller, CFRP contact roller, CFRP tension roller, CFRP nip roller, winding core, coating drum, cooling drum, spreader roller, anilox roller, calender roller, embossing roller.

Nonwoven fabric industry: cylinder roller, doffer roller, CFRP guide roller, embossing roller, cooling roller, spreader roller.

With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry and our products have been exported to more than 96 countries and have a good reputation.

Huatao understands that each customer may have different requirements, which cannot meet from one factory, but we can meet, we are also familiar with domestic factory advantages with matching superior quality and help customer not walk bend road.

We pursue each customer is buying and using HUATAO products with a rest assured heart and service is never end.
